Sheet Metal Fabrication
Complete sheet metal solutions from laser cutting and CNC punching to precision bending, welding, and surface finishing. Processing thickness from 0.5mm to 20mm on stainless steel, aluminum, copper, and carbon steel.
Process Flow

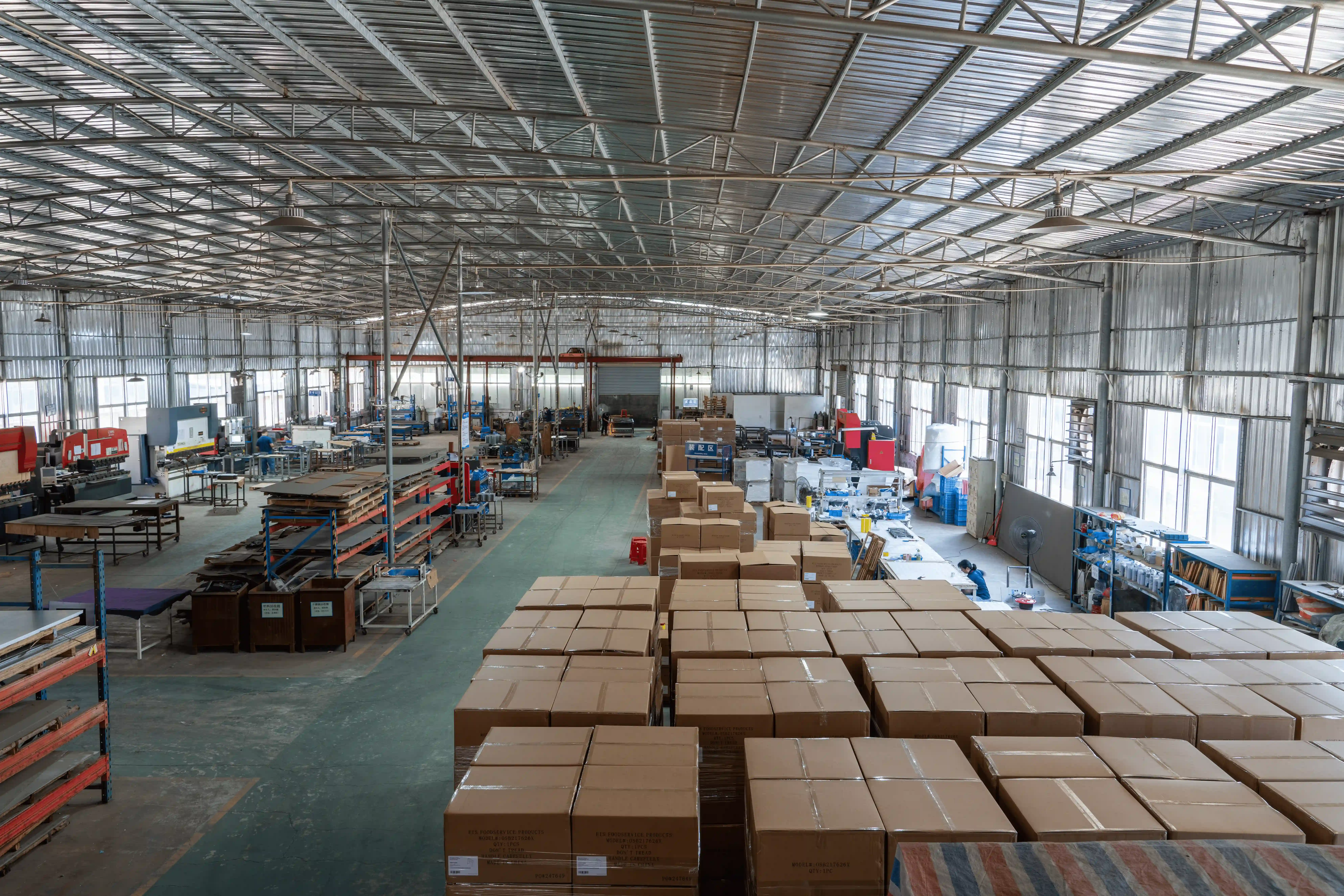

Workshop Overview
- Workshop Area 30,000 sq ft
- Equipment Sets 40+ sets
- Thickness Range 0.5 - 20 mm
- Max Sheet Size 6000 x 2000 mm

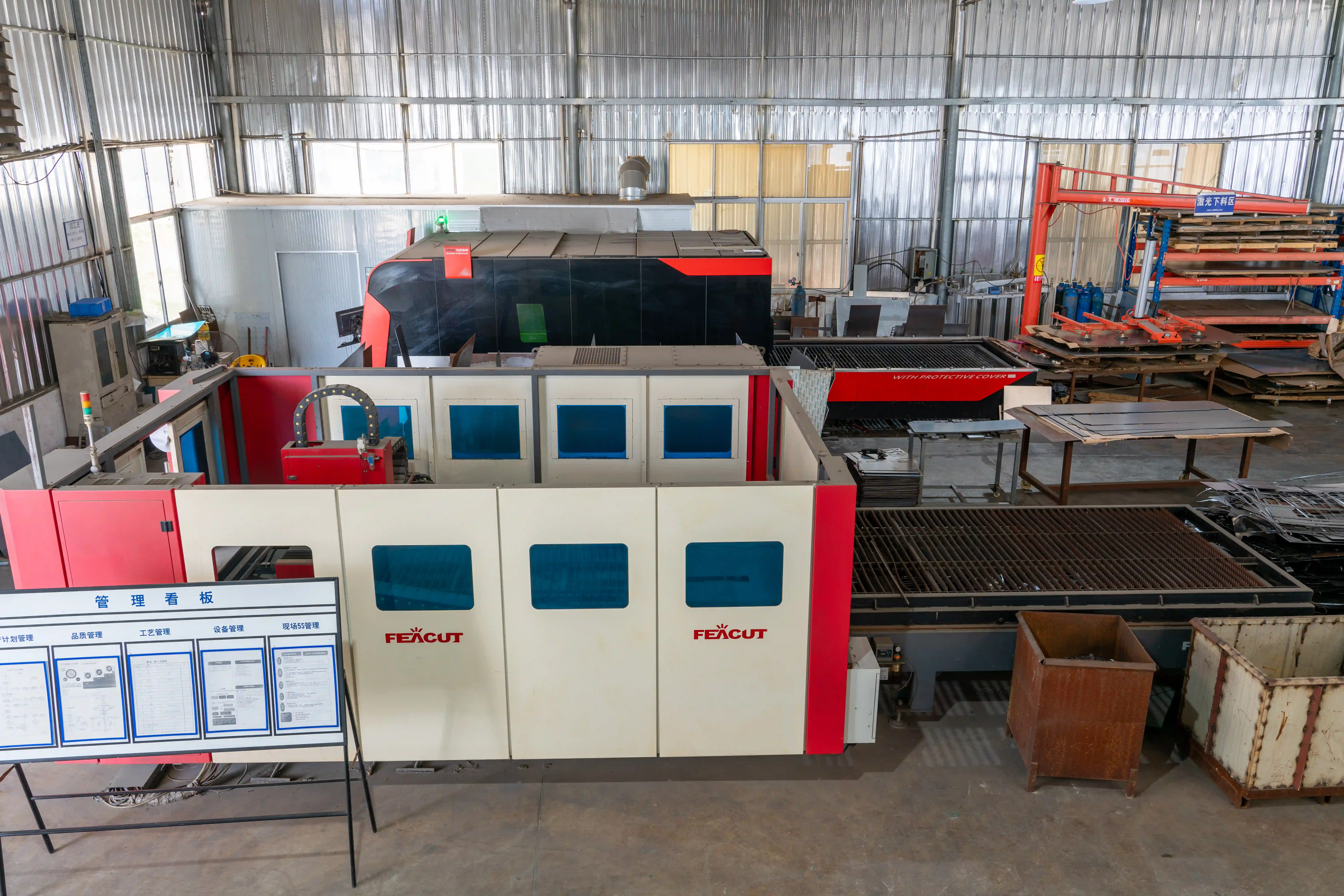

Our sheet metal workshop provides end-to-end fabrication services for enclosures, brackets, panels, and complex formed parts. Equipped with fiber laser cutters, CNC press brakes, turret punch presses, and dedicated welding stations, we handle everything from prototype sheet metal work to high-volume production runs.
Equipment List
| No. | Equipment | Qty | Brand / Model | Specification | Precision |
|---|---|---|---|---|---|

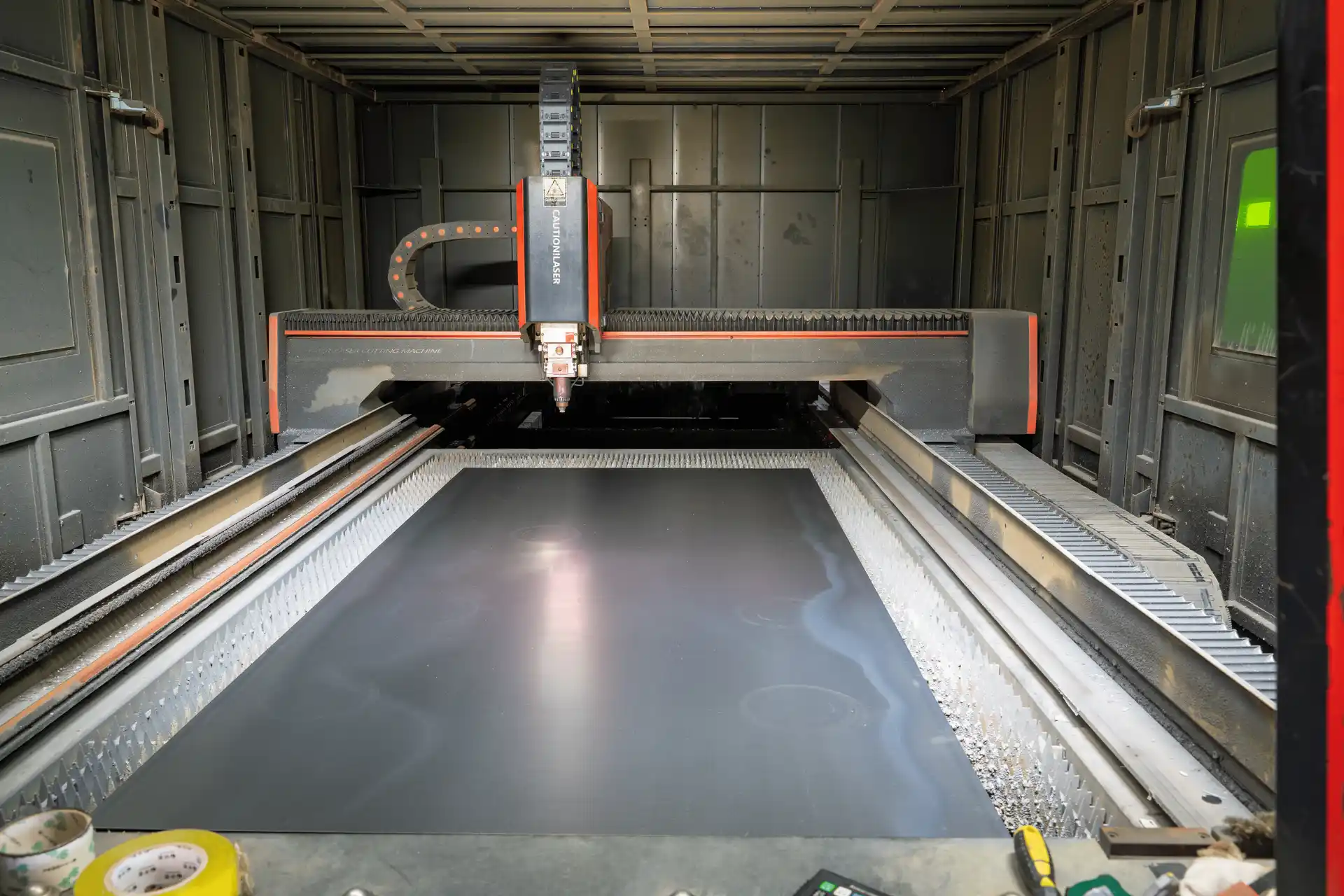

| 1 | Fiber Laser Cutting Machine | 2 sets | Bystronic | 3000 x 1500mm, 3000W | ±0.1 mm |
| 2 | CNC Press Brake (160T) | 1 set | Jiashun PC-16032 | Bending length 3200mm, 160 tons | ±0.5° |
| 3 | CNC Press Brake (120T) | 1 set | Deratech / Technica | Bending length 2500mm, 120 tons | ±0.5° |

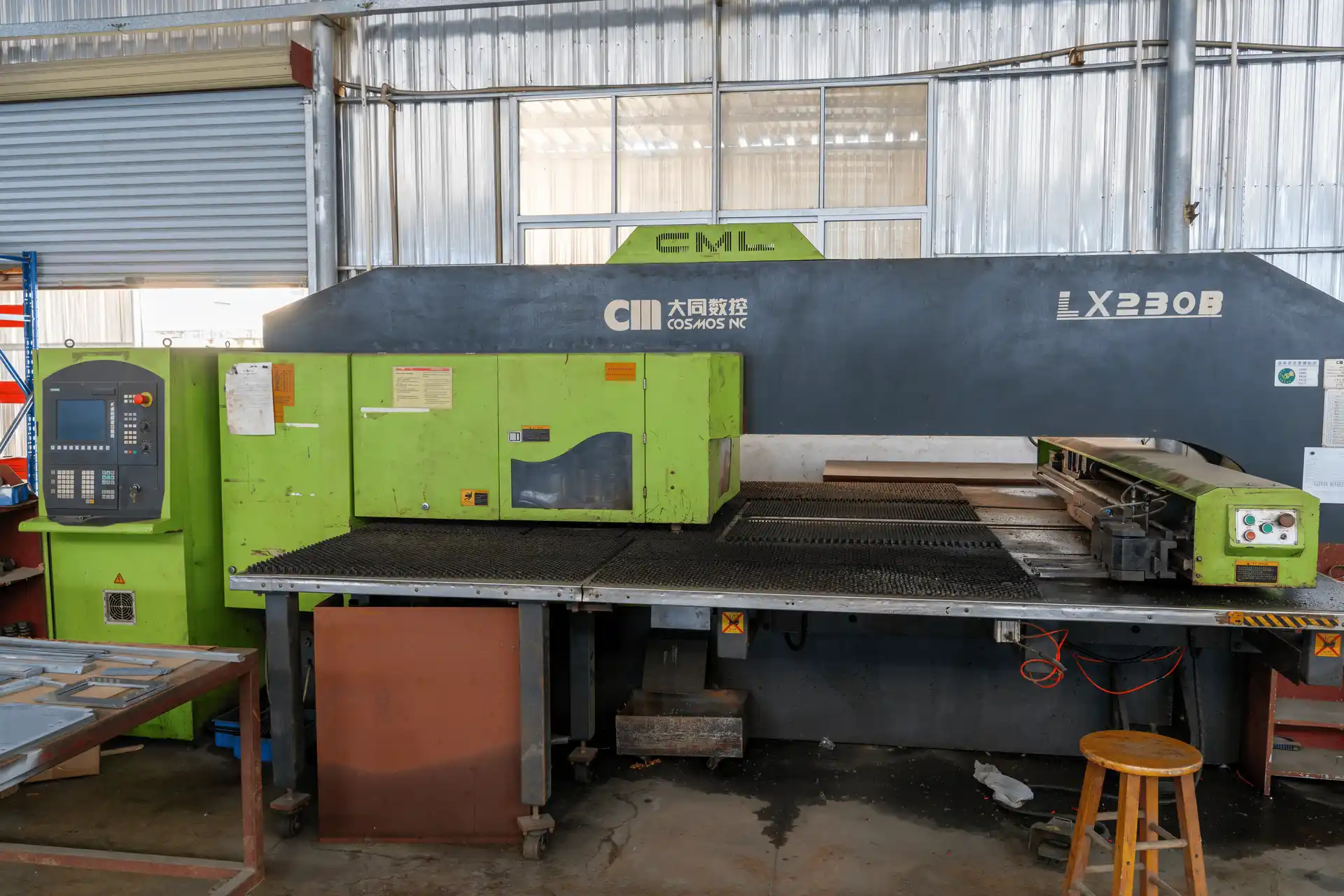

| 4 | CNC Turret Punch Press | 1 set | Cosmos NC LX230B | 1250 x 2500mm, 30T | ±0.1 mm |
| 5 | TIG/MIG Welding Station | 6 sets | TIG 315P AC/DC | Stainless steel, aluminum welding | — |

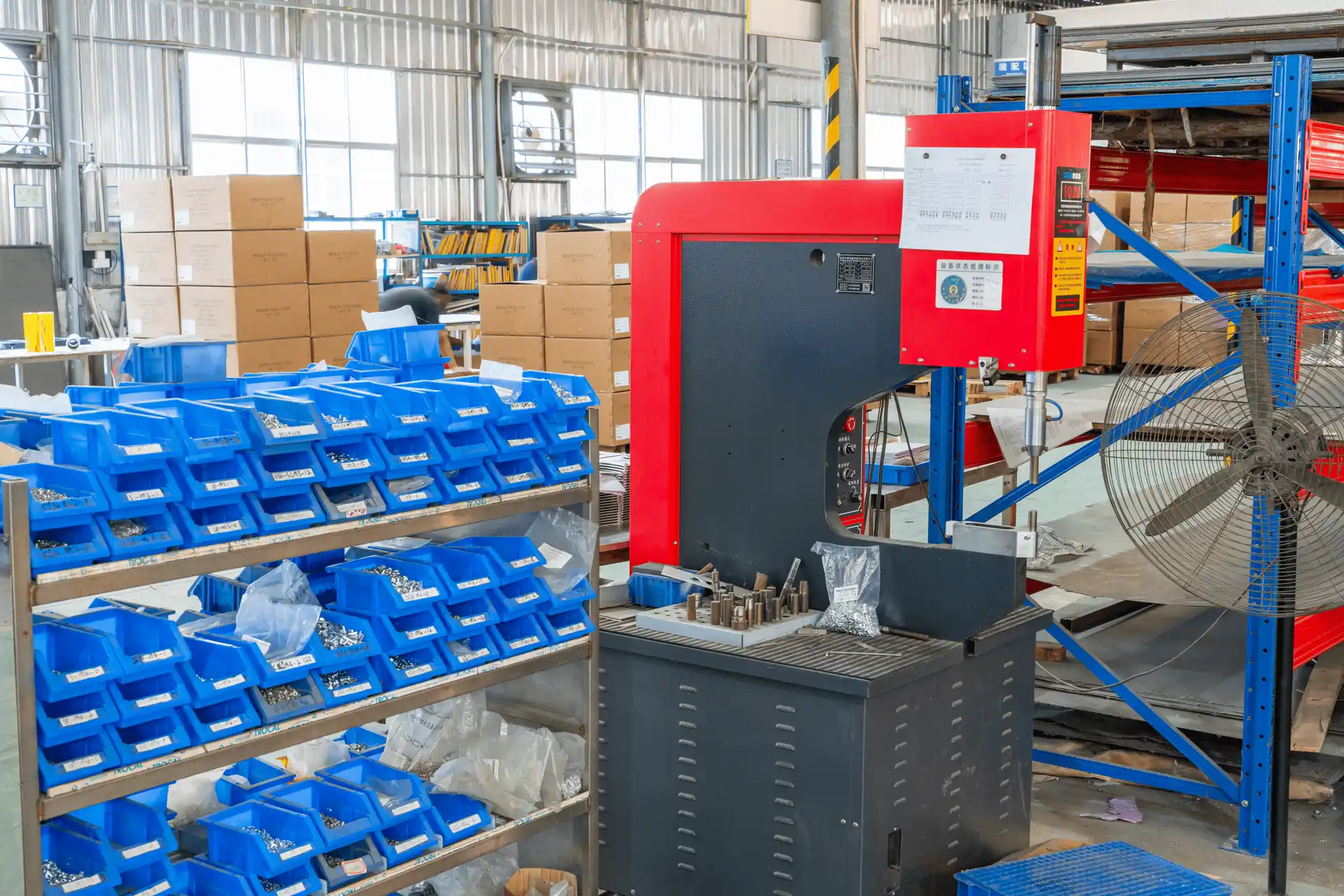

| 6 | Hydraulic Rivet Press |
Processable Materials
Processing Capabilities
Fiber Laser Cutting
High-speed fiber laser for precision cutting of sheets up to 20mm thick. Clean edges, no secondary finishing needed.
CNC Bending

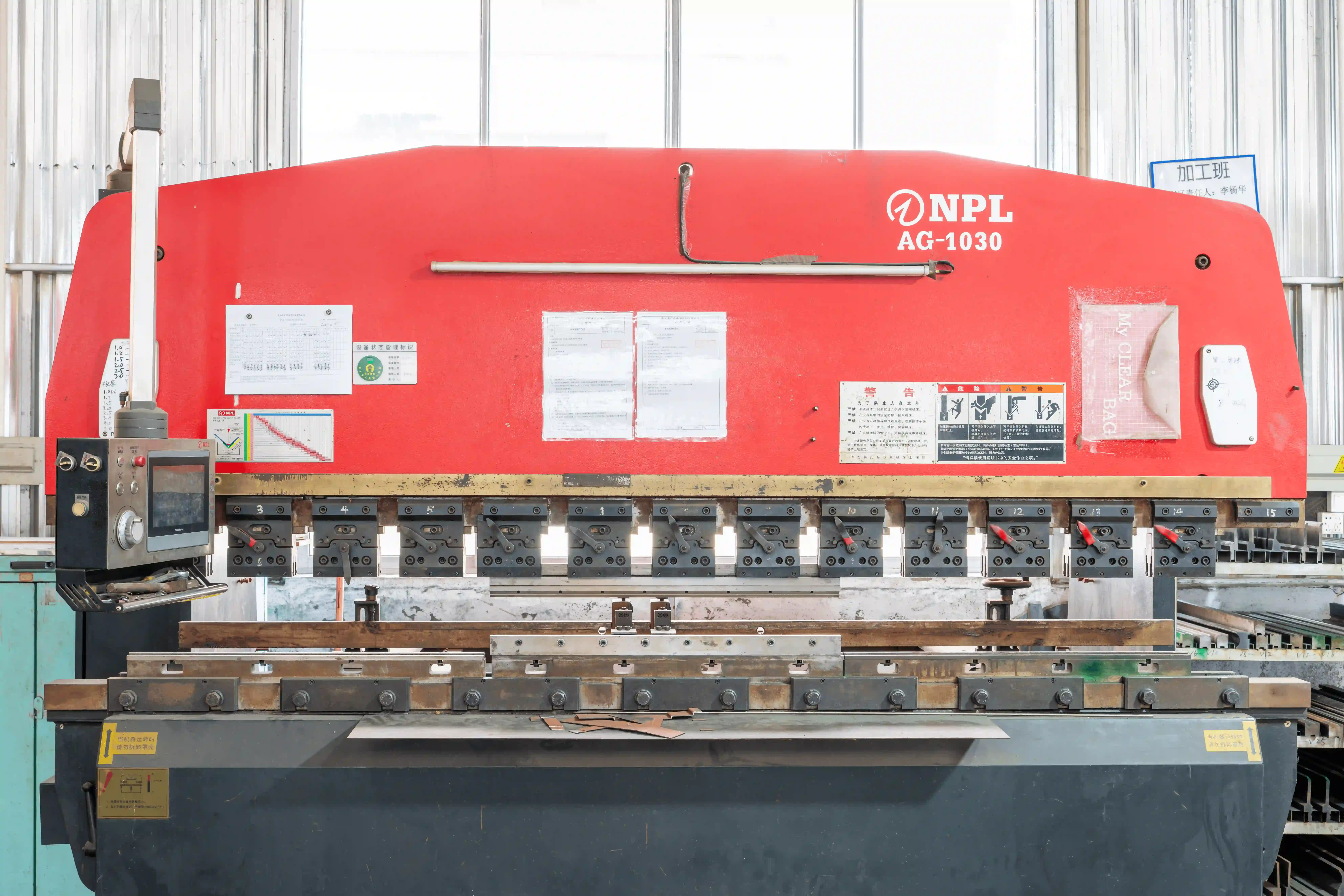

Electro-hydraulic servo CNC press brakes with ±0.5° accuracy. Multiple bend sequences for complex profiles.
CNC Punching
Turret punch press for high-speed hole patterns, louvers, embossing, and forms. Ideal for enclosure panels.
Welding & Assembly

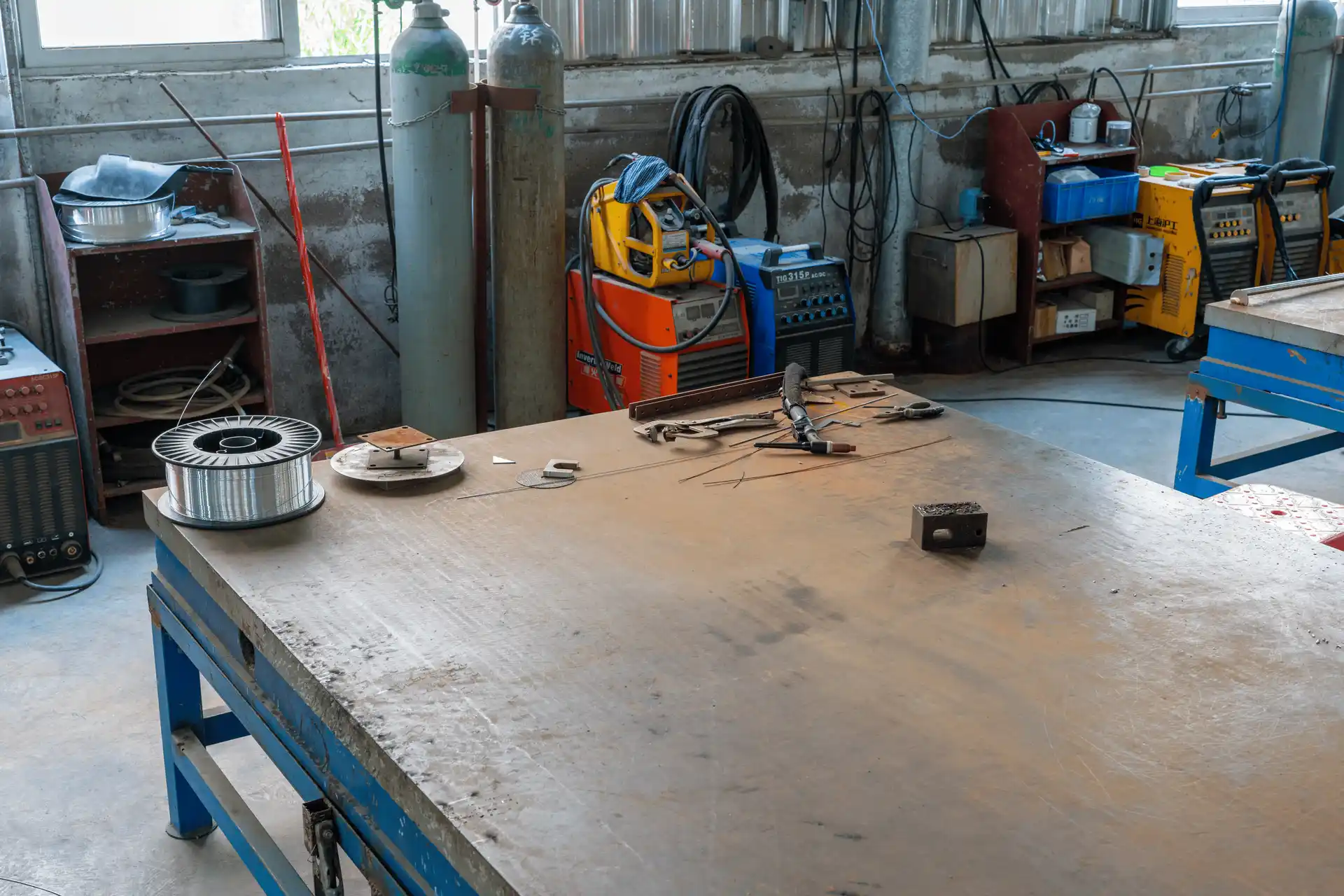

TIG, MIG, and spot welding for stainless steel and aluminum. Skilled welders for clean, strong joints.

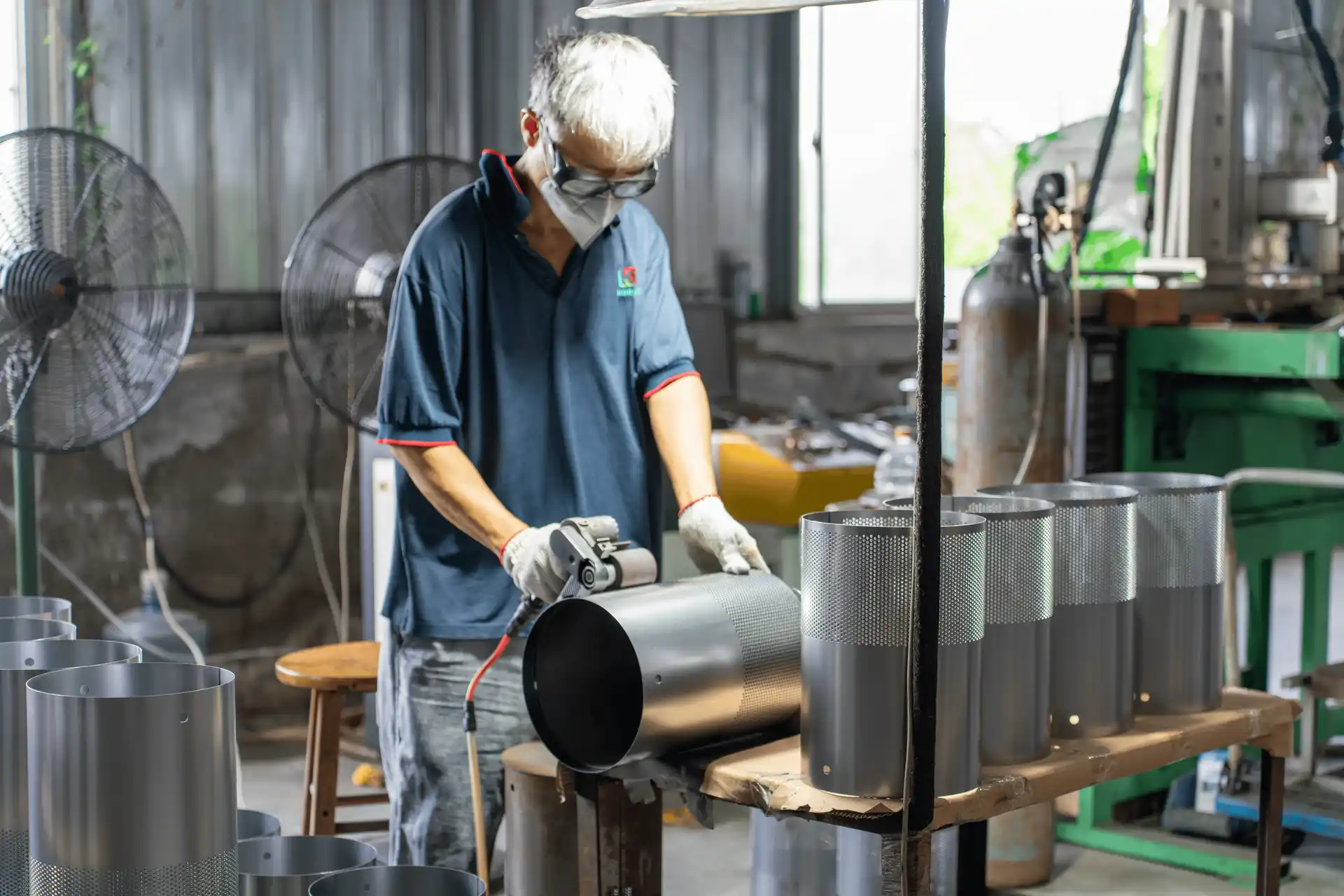

Grinding & Deburring
Abrasive belt grinding and deburring for clean edges after cutting. Weld seam grinding for smooth, paint-ready surfaces.
Hardware Insertion
Self-clinching nut, standoff, and rivet installation. Pem-style fasteners for sheet metal assemblies.
Design Guidelines
Recommended design parameters for optimal sheet metal fabrication. Following these guidelines ensures consistent quality and cost-effective production.
Minimum Bend Radius
Bend radius should be ≥ 1× material thickness for steel, ≥ 1.5× for aluminum to avoid cracking. Tighter radii require special tooling.
Hole Diameter
Minimum hole diameter ≥ material thickness. Holes smaller than sheet thickness require multiple hits or secondary processing.
Hole to Edge Distance
Keep holes at least 2× material thickness from any edge or bend line to prevent deformation during forming.
Minimum Flange Length
Flange length should be ≥ 4× material thickness + bend radius. Shorter flanges are difficult to form accurately.
Bend to Hole Distance
Maintain ≥ 2.5× material thickness + bend radius from any bend line to the nearest hole or feature.
Notch & Tab Width
Minimum notch width ≥ material thickness. Tab width should be ≥ 2× material thickness to prevent distortion.
Certifications

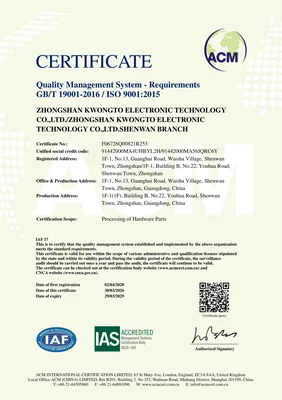

ISO 9001:2015

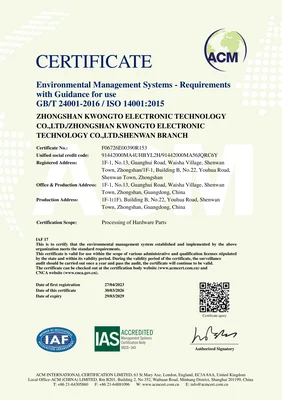

ISO 14001:2015

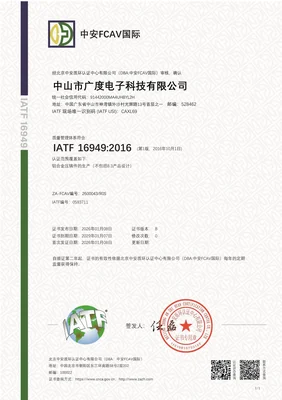

IATF 16949:2016
Industries We Serve
Electronics Enclosures
Server racks, control panels, instrument housings
Automotive
Brackets, chassis parts, exhaust components
Medical Equipment
Device enclosures, mounting brackets, trays
Construction
Facade panels, structural brackets, cable trays
LED & Lighting
Light housings, reflectors, heat dissipation panels
Security
Lock housings, camera brackets, access control panels
Telecommunications
Equipment cabinets, antenna mounts, cable management
Industrial Equipment
Machine guards, conveyor parts, custom frames
Sample Projects
Selected sheet metal parts from recent production runs. Click to enlarge.

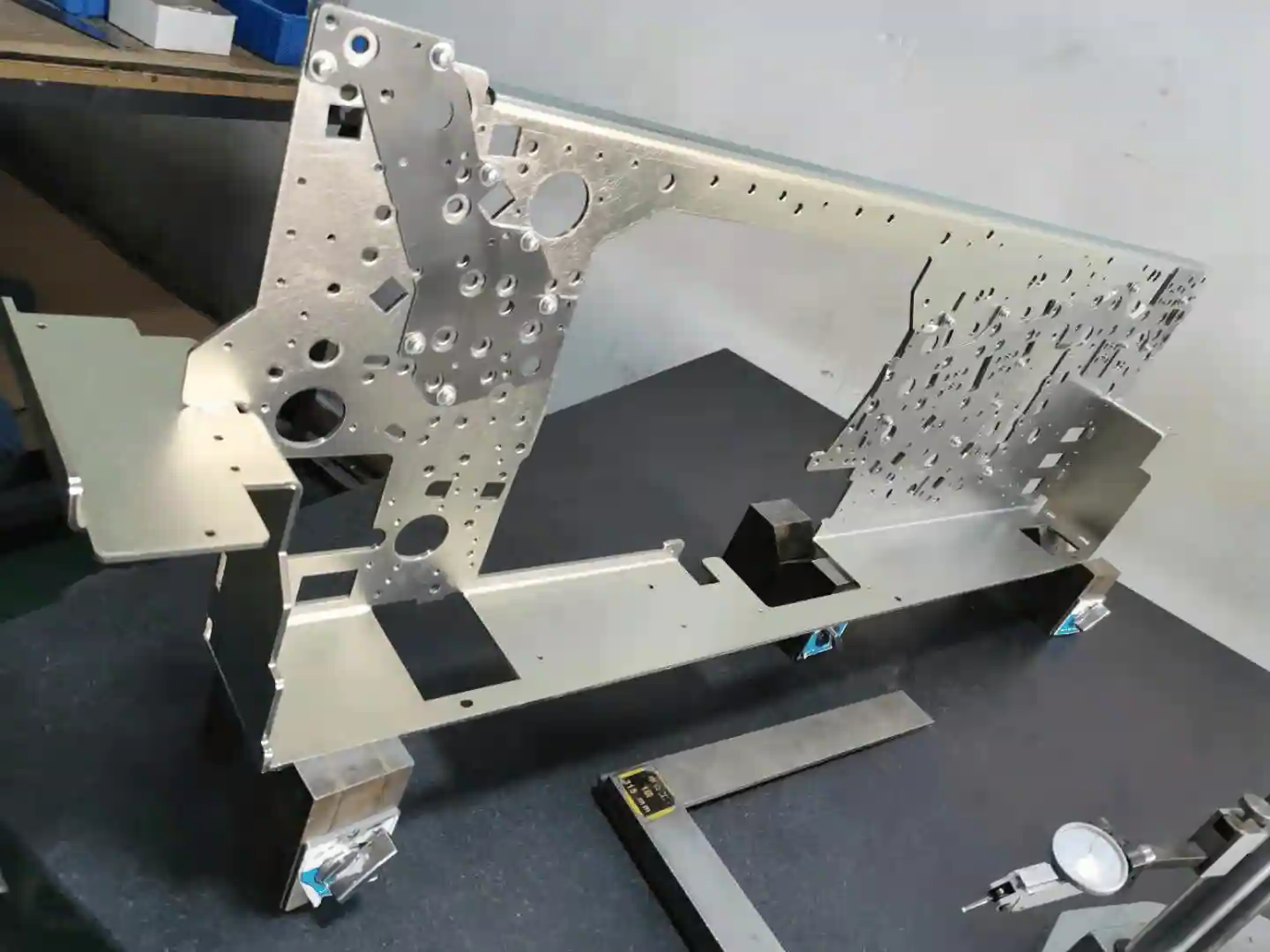

Aluminum Frame Assembly
Welded aluminum sheet metal frame with precision-bent joints, machined mounting holes, and brushed surface finish.

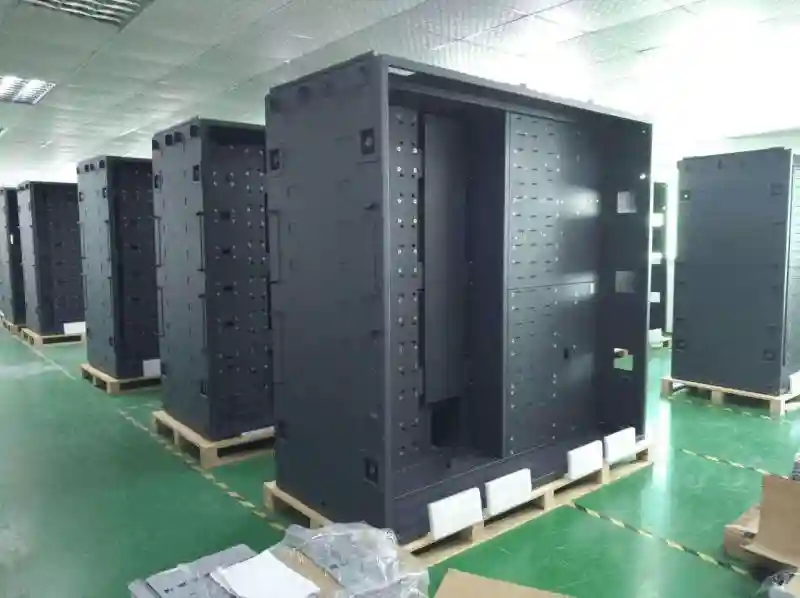

Electrical Cabinet
Large walk-in electrical cabinet fabricated from laser-cut panels, CNC bent and powder coated for outdoor duty.
Bent Brackets

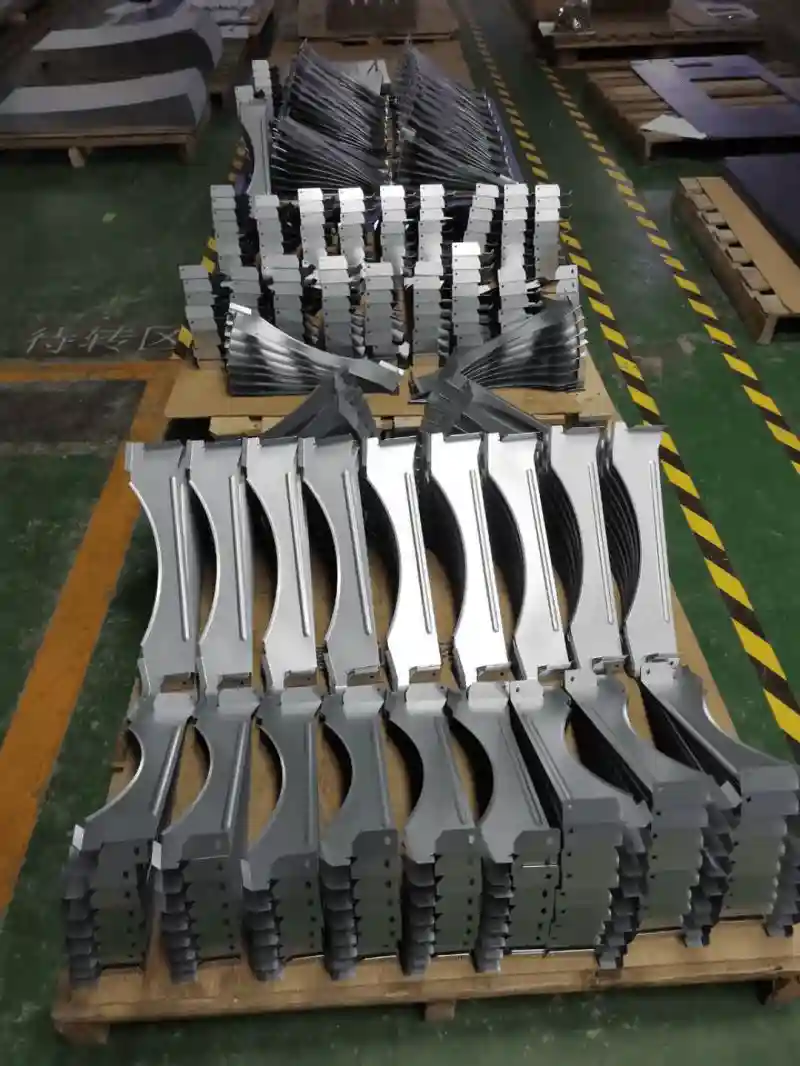

Batch-produced multi-bend mounting brackets with consistent angles and punched hole patterns for assembly lines.

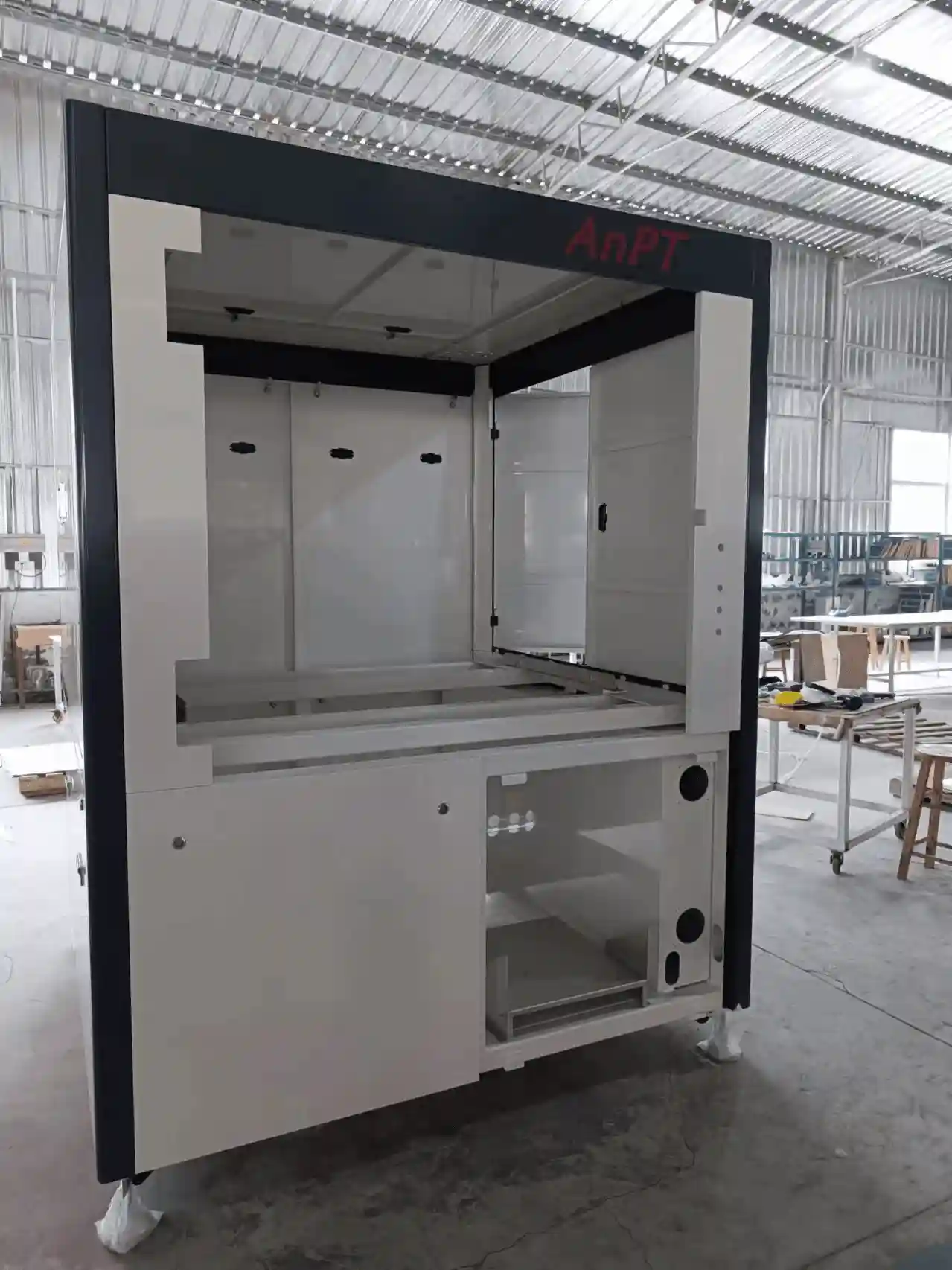

Equipment Enclosure
Machine cabinet enclosure with hinged doors, ventilation cutouts, and internal mounting rails for industrial equipment.
Frame Assembly
Welded sheet metal structural frame with square-tube reinforcements, straight and square after fixtured MIG welding.
